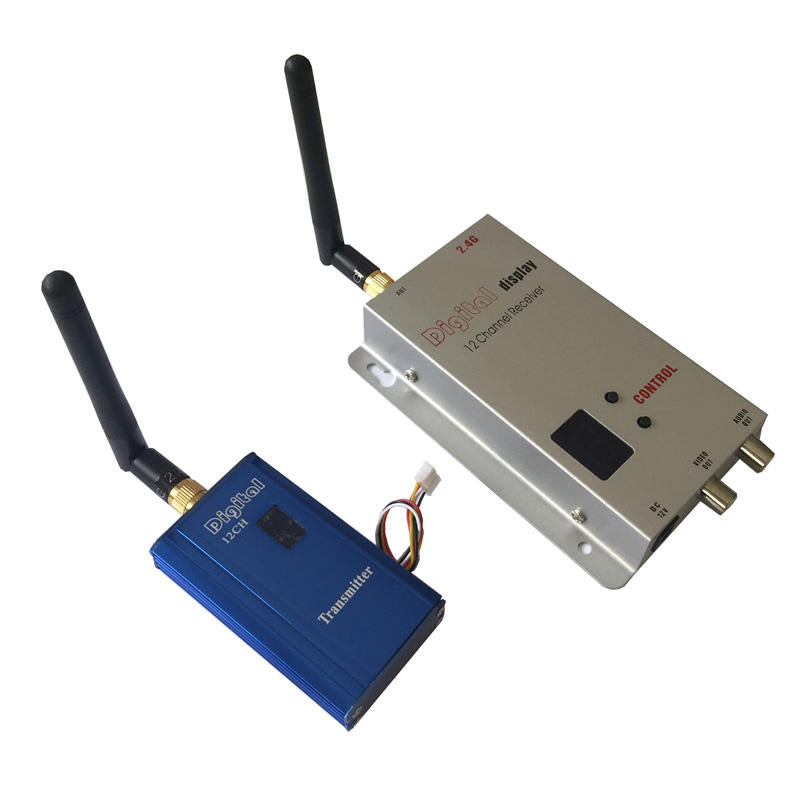

Wireless FPV Image Transmission With Digital Display

Product information:
Model: 2.4G transmitter + receiver
Voltage: DC+12V
Current: 250mA

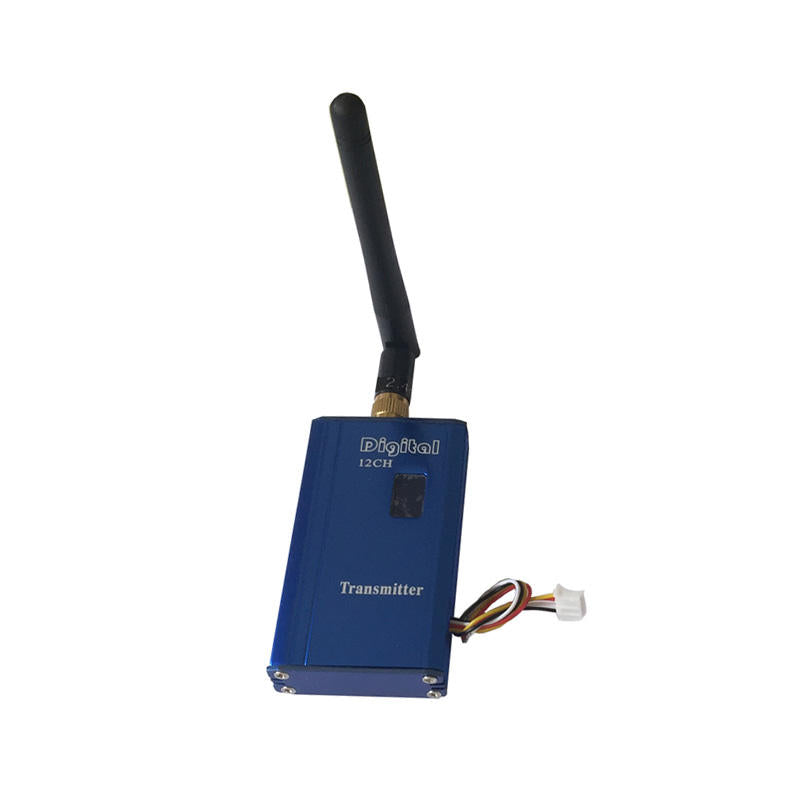

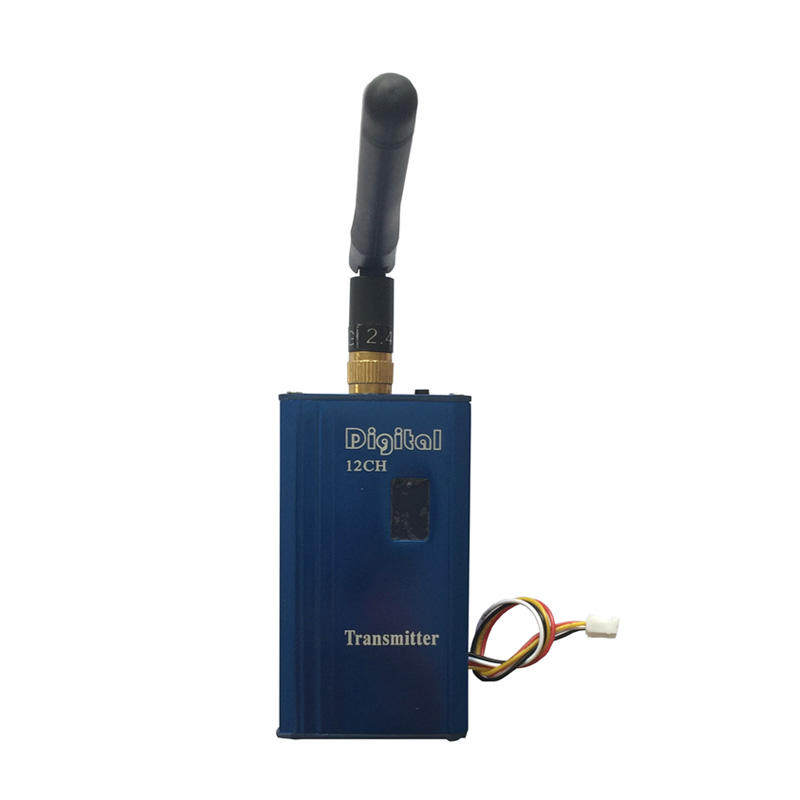

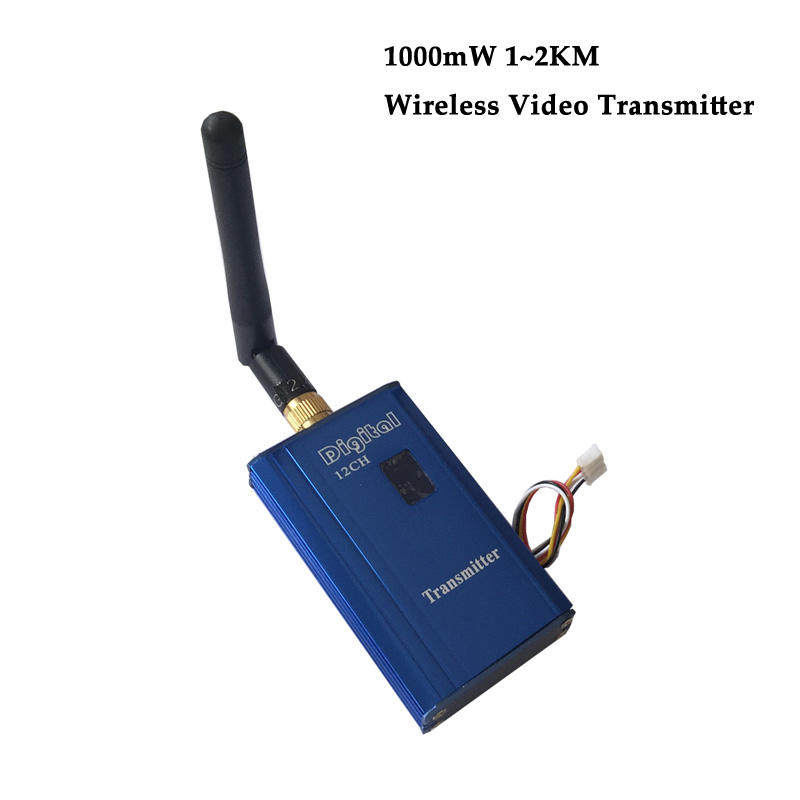

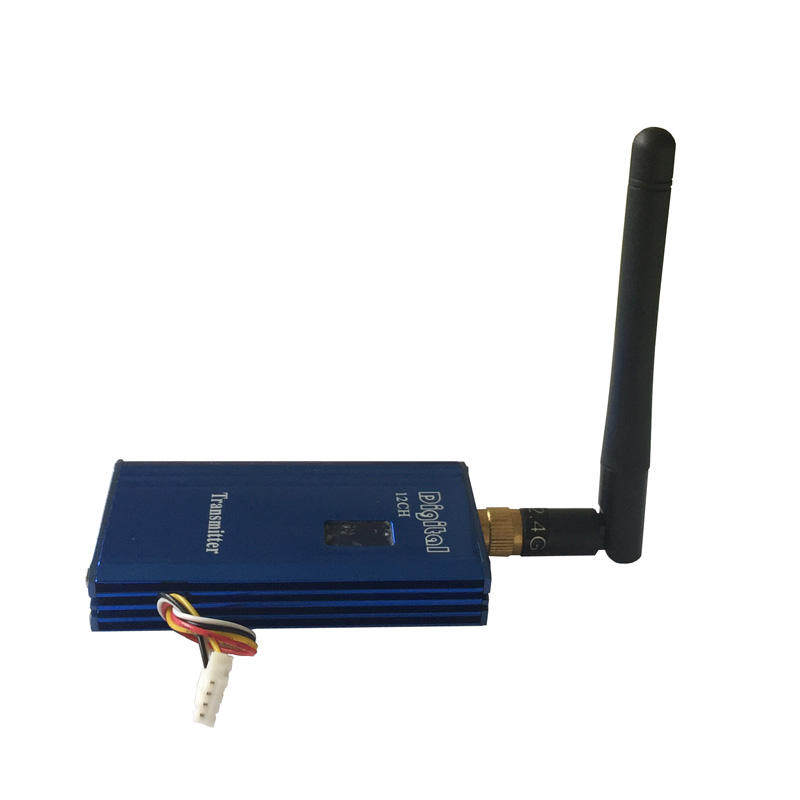

Transmitter parameters:
Model: 610T
Specification: 73 × 41 × 14 (mm)
Transmitting power: sufficient for 1000MW
Transmission frequency: 12 frequency points in total, 0-2.410 G/1-2.430G/2-2.450G/3-2.470G/4-2.490G/5-2.510G/6-2.390G/7-2.370G/8-2.350G/9-2.330G/H-2.310G/C-2.290G
Frequency control: Digital frequency phase-locked loop control, locking each locking point.
Transmission signal: synchronous transmission of images and sounds
Linear transmission distance: 500-1000M
Voltage: DC+12V
Current: 400mA

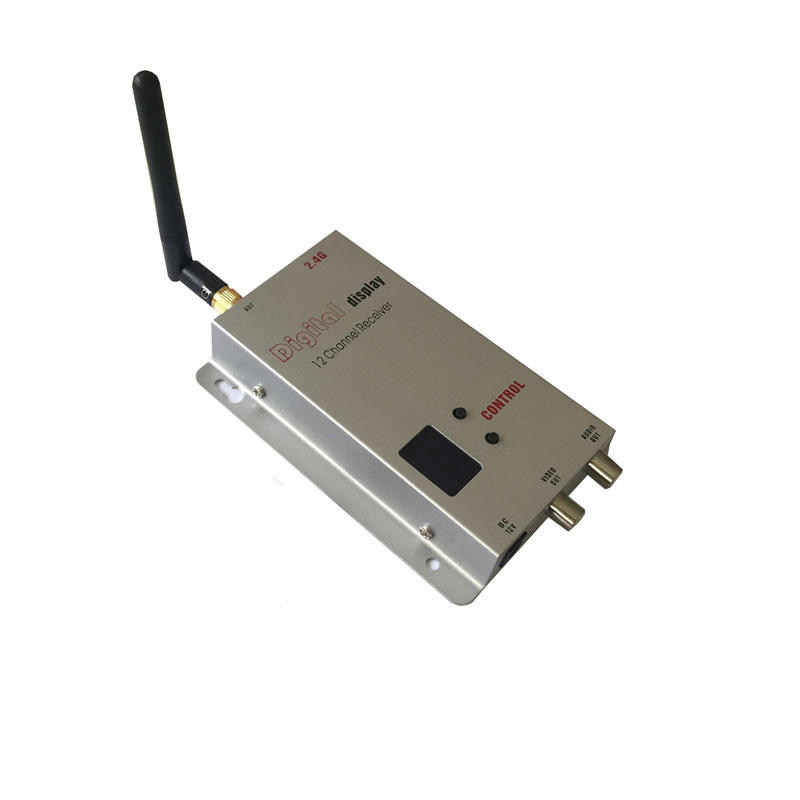

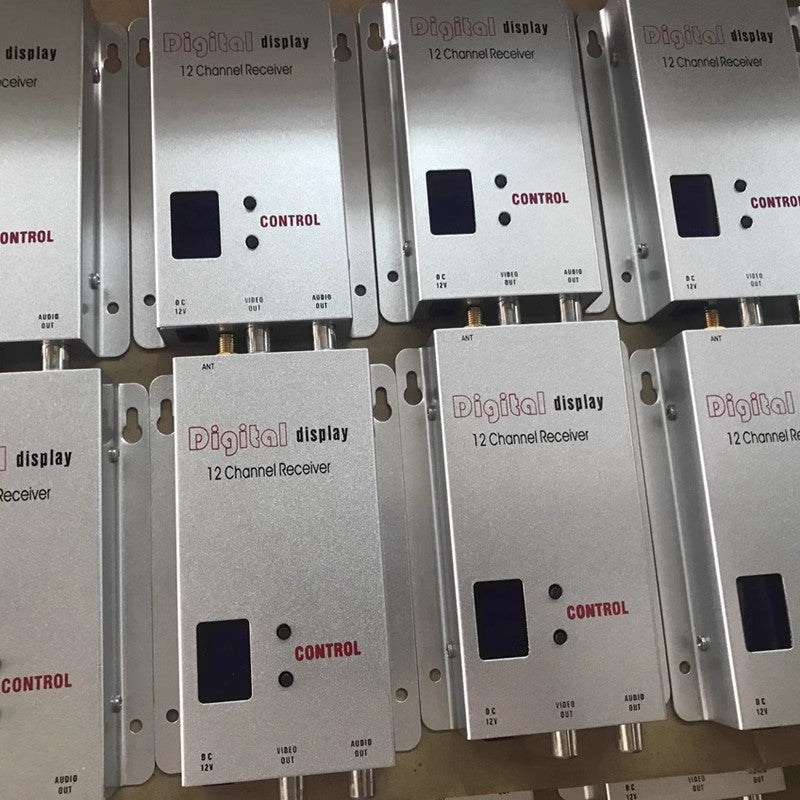

Receiver parameters:
Model: R02
Mediation type: FM
Receiving frequency: 2.4GHz
Received signal: synchronous transmission of audio, video, and images
Receiver sensitivity: -85dBm
Video input level: 1Vp-p
Audio input level: 1Vp-p
Working temperature: -20 to+50 ° C/-4 to+122 ° H
Working humidity: 85% RH
Storage temperature: -40 to+80 ° C/-40 to+185 ° H
Specification: 115 × 60 × 20 (mm)
Weight: 160g
Voltage: DC+12V
Current: 250mA





Package accessories:

One wireless transmitter for channel 1.12

One wireless audio and video receiver for channel 2.12

3. One power adapter

4. One receiver audio and video connection cable

5. One transmitter audio and video adapter cable

6. One transmitting antenna

7. One receiving antenna
